Installing AutoCAD LT98 on Windows 11

AutoCAD LT98 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT98 gives an error like this one…

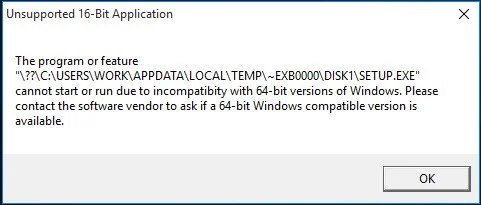

Windows 16bit setup error - This app can't run on your PC



“This app can’t run on your PC”

or this one…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98
“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98”



…all is not lost, follow these instructions to install your AutoCAD LT98 on Windows 11…

Ransomware Protection Windows 11 and AutoCAD

Just before we start note that Windows 11 comes with a Ransomware Protection which includes Controlled Folder Access. Controlled folder access blocks applications from writing to your Documents, Pictures, Videos, Music, Public and Favorites folders. AutoCAD versions all the way to AutoCAD 2021 write to certain user Public folders and are therefore blocked by this feature. This can cause issues with all sorts of things including activating your AutoCAD license and even running AutoCAD. Ransomware Protection is an important feature of Windows 11 but it will affect your AutoCAD unless you allow AutoCAD and its dependent applications access to the controlled folders.

How to install AutoCAD LT 98

A quick word of advice: please follow the instructions below precisely as documented including using the same folder names and paths. This will significantly reduce the risk of having any

problems…

  1. If you don’t yet have a copy of the Longbow Converter App you can purchase it here or click on the download link we sent you via email in order to download the Converter App to your PC.
  2. Before installing the Converter App, make sure the files downloaded from our site are not blocked by Windows SmartScreen… Windows 11 is finicky, click the TLC zip first to make sure it’s fully selected then Right+click the file and select Properties. Be sure to check the Unblock checkbox as shown below and Click OK…
  1. Double click the zip file to open it and install the TLC application as normal. By the way, TLC stands for The Longbow Converter
  2. Once installed, start the Longbow Converter App…
    1. Now place your AutoCAD LT98 CD in the CDRom Drive
    2. In the Converter App, select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “. . .” button, select your AutoCAD LT98 installation CD
    4. Next, click the “Run Old Installer” button and follow the onscreen instructions. If all is well a dialog will appear stating success, simply click OK to start your AutoCAD setup
      1. Now I know it’s unheard of these days, but at this point expect to wait up to 45 minutes for your AutoCAD LT98 setup.exe program to appear, be patient – NOTE: do not continue with the install until reading the next step…
    1. Once the setup starts, stop and read the next steps all the way to the end! By the way, if your AutoCAD LT98 setup does not start after 45 minutes, read the Troubleshooting section below.
  3. In the AutoCAD setup program…
    1. navigate through each setup dialog as normal, with these exceptions…
      1. Make sure you do a Typical Install (not a Full Install)
      2. When you get to the installation folder input dialog **it’s vitally important to make sure you install to c:\acadlt98 (not Program Files\AutoCADLT98 as usually prompted)**
  4. Now carry on with the install
    1. Do not reboot once the install is complete
    2. Ignore any errors related to not being able to create the shortcut e.g. “Cannot Create folder ‘AutoCAD LT98’“, you will have to create a shortcut on your computer Desktop to your c:\acadlt98\acad.exe by hand.
    3. Again, do not reboot if prompted to do so
  5. Once your AutoCAD LT98 setup has completed the installation…
    1. Make sure you fully close the setup program.
    2. Once the setup is closed the Converter will automatically fix the c:\acadlt98 program files. You should see “Success!” displayed in the 3rd tab named “Old AutoCAD Program Reviver
    3. Now reboot your PC
  6. You can now run your AutoCAD LT98 as normal, using Windows Explorer, navigate to c:\acadlt98 and double click aclt.exe

Troubleshooting

  • If your AutoCAD LT98 setup is not starting after 45 minutes…
    1. First try turning off UAC, rebooting, then restart the steps above.
    2. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing LT98 from Windows Safe Mode
  • If you are getting either a Bad Mem Pointer error and or a Smartheap handler recursively re-entered error when you start your AutoCAD LT98 then you need to re-run all the steps above, taking care to do each step precisely as it says, most likely you are missing from step 5 or you have not installed to c:\acadlt98 as stated in step (7) above.
  • When starting AutoCAD, if you receive an ‘acad.exe – System Error’ message: The program can’t start because ac1st15.dll is missing from your computer. Try reinstalling the program to fix this problem. If you carried out step (7) above, then try rebooting your PC
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  • Issues with Calcomp Digitizer – Calcomp Digitizer not working
  • If the setup displays an error message InstallError (IUO)
    (X)  not enough space(IUO) try unplugging any External USB drives
  • Plotting issues? If you get an error splwow64.exe “The application was unable to start correctly” with error “0xc0000005”
    1. Make sure your Anti-virus and/or Windows Firewall is not blocking splwow64.exe
    2. If the problem persists
      1. First, note that you need the latest version of the Converter App
      2. Start the Converter App
      3. Select the 3d tab “Old AutoCAD Program Reviver”
      4. Click the Tools Menu->Reduced Power Mode
      5. Using the “…” button, pick your acad.exe folder e.g. c:\acadlt98
      6. Click “Fix Old Program” and follow prompts
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD

Copyright 2023 (c) Longbow Software

Installing AutoCAD LT 2000 on Windows 11

Most users of AutoCAD LT 2000 are so used to it that they cannot do without it. With the latest hardware and required move to newer Windows versions, trying to install your AutoCAD LT 2000 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

Windows 16bit setup error – This app can’t run on your PC

Or maybe this error…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98

Error while trying to install AutoCAD LT 2000 on newer versions of Windows

…all is not lost, just read on…

Ransomware Protection Windows 11 and AutoCAD

Just before we start note that Windows 11 comes with a Ransomware Protection which includes Controlled Folder Access. Controlled folder access blocks applications from writing to your Documents, Pictures, Videos, Music, Public and Favorites folders. AutoCAD versions all the way to AutoCAD 2021 write to certain user Public folders and are therefore blocked by this feature. This can cause issues with all sorts of things including activating your AutoCAD license and even running AutoCAD. Ransomware Protection is an important feature of Windows 11 but it will affect your AutoCAD unless you allow AutoCAD and its dependent applications access to the controlled folders.

How to install AutoCAD LT 2000

A quick word of advice: please follow the instructions below precisely as documented including using the same folder names and paths. This will significantly reduce the risk of having any problems…
  1. If you don’t yet have a copy of the Longbow Converter App you can purchase it here or click on the download link we sent you via email in order to download the Converter App to your PC.
  2. Before installing the Converter App, make sure the files downloaded from our site are not blocked by Windows SmartScreen… Windows 11 is finicky, click the TLC zip first to make sure it’s fully selected then Right+click the file and select Properties. Be sure to check the Unblock checkbox as shown below and Click OK…
  3. Double click the zip file to open it and install the TLC application as normal. By the way, TLC stands for The Longbow Converter
  4. Now, start the Longbow Converter tool by double clicking the Longbow Converter shortcut on your Desktop… .
    1. Insert your AutoCAD LT 2000 CD
    2. Select the 2nd tab titled “Old AutoCAD Installer Reviver” by clicking on it
    3. Next, using the ‘…’ button select your AutoCAD LT 2000 CD
    4. Next, click the “Run Old Installer” button and follow the onscreen instructions. If all is well a dialog will appear stating success, simply click OK to start your AutoCAD setup.
    5. Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your AutoCAD 2000 setup.exe program to fully appear – please be patient
    6. Once the setup starts, stop and read the next step
  5. Once the AutoCAD setup program appears navigate through each setup dialog as normal and do not deviate from the defaults except when you get to the installation folder – **it’s vitally important to make sure you install to c:\acadlt2000 (not Program Files (x86)\AutoCAD LT 2000 as usually prompted)** e.g.Setting custom install path for AutoCAD LT 2000
      1. Now complete the setup making sure to…
        1. ignore the error message that appears near the end about the shortcut cannot be created “Cannot create folder AutoCAD LT 2000” – you will simply need to create the program shortcut yourself by hand once the installation is finished.
        2. Do not reboot if prompted to do so
  6. Once setup has completed…
    1. Make sure to fully close the AutoCAD setup program
    2. Back in the Converter App, make sure it has completed the final stage of processing using the “Old AutoCAD Program Reviver” tab – it should display “SUCCESS” in green…
  7. Now Reboot your PC
  8. Once rebooted, are ready to run your AutoCAD LT 2000! Simply use Windows Explorer, navigate to c:\acadlt2000 and double click aclt.exe

Troubleshooting

Copyright 2022 (c) Longbow Software

Installing AutoCAD LT97 on Windows 11

AutoCAD LT97 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT97 gives an error like this one…
Windows 16bit setup error - This app can't run on your PC

“This app can’t run on your PC”

or this one…
Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98
“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98” …all is not lost, follow these instructions to install your AutoCAD LT97 on Windows 11…

Ransomware Protection Windows 11 and AutoCAD

Just before we start note that Windows 11 comes with a Ransomware Protection which includes Controlled Folder Access. Controlled folder access blocks applications from writing to your Documents, Pictures, Videos, Music, Public and Favorites folders. AutoCAD versions all the way to AutoCAD 2021 write to certain user Public folders and are therefore blocked by this feature. This can cause issues with all sorts of things including activating your AutoCAD license and even running AutoCAD. Ransomware Protection is an important feature of Windows 11 but it will affect your AutoCAD unless you allow AutoCAD and its dependent applications access to the controlled folders.

How to install AutoCAD LT97

A quick word of advice: please follow the instructions below precisely as documented including using the same folder names and paths. This will significantly reduce the risk of having any

problems…

  1. If you don’t yet have a copy of the Longbow Converter App you can purchase it here or click on the download link we sent you via email in order to download the Converter App to your PC.
  2. Before installing the Converter App, make sure the files downloaded from our site are not blocked by Windows SmartScreen… Windows 11 is finicky, click the TLC zip first to make sure it’s fully selected then Right+click the file and select Properties. Be sure to check the Unblock checkbox as shown below and Click OK…
  1. Double click the zip file to open it and install the TLC application as normal. By the way, TLC stands for The Longbow Converter
  2. Once installed, start the Longbow Converter App…
    1. Now place your AutoCAD LT97 CD in the CDRom Drive
    2. In the Converter App, select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “. . .” button, select your AutoCAD LT97 installation CD
    4. Next, click the “Run Old Installer” button and follow the onscreen instructions. If all is well a dialog will appear stating success, simply click OK to start your AutoCAD setup
      1. Now I know it’s unheard of these days, but at this point expect to wait up to 45 minutes for your AutoCAD LT97 setup.exe program to appear, be patient – NOTE: do not continue with the install until reading the next step…
    5. Once the setup starts, stop and read the next steps all the way to the end! By the way, if your AutoCAD LT97 setup does not start after 45 minutes, read the Troubleshooting section below.
  3. In the AutoCAD setup program…
    1. navigate through each setup dialog as normal, with these exceptions…
      1. Make sure you do a Typical Install (not a Full Install)
      2. When you get to the installation folder input dialog **it’s vitally important to make sure you install to c:\acadlt97 (not Program Files\AutoCADLT97 as usually prompted)**
  1. Now carry on with the install
    1. Do not reboot once the install is complete
    2. Ignore any errors related to not being able to create the shortcut e.g. “Cannot Create folder ‘AutoCAD LT97’, you will have to create a shortcut on your computer Desktop to your c:\acadlt97\aclt.exe by hand.
    3. Again, do not reboot if prompted to do so
  2. Once your AutoCAD setup has completed the installation…
    1. Make sure you fully close the setup program.
    2. Once the setup is closed the Converter will automatically fix the c:\acadlt97 program files. You should see “Success!” displayed in the 3rd tab named “Old AutoCAD Program Reviver
    3. Now reboot your PC
  3. You can now run your AutoCAD LT97, using Windows Explorer, navigate to c:\acadlt97 and double click aclt.exe

Troubleshooting

  • If your AutoCAD LT97 setup is not starting after 45 minutes…
    1. First try turning off UAC, rebooting, then restart the steps above.
    2. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing LT97 from Windows Safe Mode
  • If you are getting an application failure with Unhandled Exception 0x800F0922
    • The security software (ESET Nod 32) must uninstalled; suspending it not effective
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
Copyright 2022 (c) Longbow Software

Installing AutoCAD LT 2002 on Windows 11

If you are a seasoned AutoCAD LT 2002 user, no doubt you will at some point have run into the famous GEDIT 3 error and been very frustrated with it. That error occurs because of certain video card drivers and/or certain types of anti-virus software setups.

On Windows 10, Windows 7 and Windows 8, the GEDIT 3 error is even more prominent because of all the new security features that are inside of Windows 7 and 8. The good news is that it’s totally possible to eradicate the GEDIT 3 error by follow the instructions below.


Follow these instructions to solve issues around installing/running your legacy AutoCAD LT 2002 on Windows 11

Ransomware Protection Windows 11 and AutoCAD

Windows 11 comes with a Ransomware Protection which includes Controlled Folder Access. Controlled folder access blocks applications from writing to your Documents, Pictures, Videos, Music, Public and Favorites folders. AutoCAD versions all the way to AutoCAD 2021 write to certain user Public folders and are therefore blocked by this feature. This can cause issues with all sorts of things including activating your AutoCAD license and even running AutoCAD. Ransomware Protection is an important feature of Windows 11 but it will affect your AutoCAD unless you allow AutoCAD and its dependent applications access to the controlled folders.

How to install AutoCAD LT 2002

A quick word of advice: please follow the instructions below precisely as documented including using the same folder names and paths. This will significantly reduce the risk of having any problems…
  1. If you don’t yet have a copy of the Longbow Converter App you can purchase it here or click on the download link we sent you via email in order to download the Converter App to your PC.
  2. Before installing the Converter App, make sure the files downloaded from our site are not blocked by Windows SmartScreen… Windows 11 is finicky, click the TLC zip first to make sure it’s fully selected then Right+click the file and select Properties. Be sure to check the Unblock checkbox as shown below and Click OK…
  3. Double click the zip file to open it and install the TLC application as normal. By the way, TLC stands for The Longbow Converter
  4. Start the Longbow Converter tool
    1. Insert your AutoCAD LT 2002 CD into your CDRom drive
    2. Select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “…” button, pick your AutoCAD CD
    4. Click “Run Old Installer
      1. Read and follow all the prompts
      2. Once the AutoCAD setup starts, stop and read the next step…
  5. In the AutoCAD setup program, navigate through each setup dialog as normal, with these exceptions…
    1. When you arrive at the installation folder path setup dialog…
      1. **it’s vitally important to make sure you install to c:\acadlt2002 (not Program Files (x86)\AutoCAD LT 2002 which is normally default)** – e.g.

        You must change the default AutoCAD LT 2002 Install path
      2. Once setup completes…
        1. Do not reboot if asked to do so
        2. Make sure to fully close the setup program when the installation is complete.
  6. Back in the Converter app and make sure it’s completed the final stage of processing using the “Old AutoCAD Program Reviver” tab, it should say SUCCESS!
  7. Finally, reboot your PC and run your AutoCAD and once registered, exit AutoCAD and continue to the next step.
  8. Next, obtain the AutoCAD LT 2002 sp1 from here unzip and save to c:\Autodesk\spdo not install yet
  9. Next, obtain the AutoCAD LT 2002 sp2 from here (or AutoCAD LT 2002 sp2 locked version from here) and save to c:\Autodesk\sp do not install yet
  10. Go back into the Converter
    1. select the 3rd tab named “Old AutoCAD Program Reviver”
    2. Using the “. . .” button, select the c:\Autodesk\sp folder
    3. click “Fix Old Program“.
      1. Now Install the LT 2002 sp1 by running c:\Autodesk\sp\acad2002LTsp1.exe
        1. IMPORTANT NOTE: If you get a 114 error, contact Longbow Software Support to get them to fix it for you.
      2. Next, install the LT 2002 sp2 by running either the unlocked c:\Autodesk\sp\acltk044-k047unl.exe or the locked c:\Autodesk\sp\acltk044-k047swl.exe
        1. IMPORTANT NOTE: If you get a 114 error, contact Longbow Software Support to get them to fix it for you.
  1. Finally, reboot your PC and run AutoCAD as normal.

Troubleshooting

  • If you cannot install your AutoCAD LT 2002 Service Packs because of an error “114: Autocad LT 2002 update was not applied” – rather than try and solve this issue, the easiest solution is:
    1. To go back to your old Windows XP machine and make sure that all of the sp’s are installed on your old Windows XP machine’s installation of AutoCAD LT 2002
    2. Next, simply copy all of the AutoCAD LT 2002 program files and folders from your old Windows XP machine to a USB drive – copy the “contents” of C:\Program Files\AutoCAD LT 2002
    3. Now transfer the USB to your new machine and copy the files that were on your old Windows XP machine’s C:\Program Files\AutoCAD LT 2002 folder into your newly installed c:\acadlt2002 folder – you should see a question if you should overwrite all files, say YES
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD
Copyright 2022 (c) Longbow Software

Installing AutoCAD for Windows 95 (LT95) on Windows 11

As an existing AutoCAD LT95 user, you most likely cannot do without your beloved AutoCAD. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT95 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

“This app can’t run on your PC”

or this one…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98
“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98”

…all is not lost, follow these instructions to install your LT95 on Windows 11…

Ransomware Protection Windows 11 and AutoCAD

Just before we start note that Windows 11 comes with a Ransomware Protection which includes Controlled Folder Access. Controlled folder access blocks applications from writing to your Documents, Pictures, Videos, Music, Public and Favorites folders. AutoCAD versions all the way to AutoCAD 2021 write to certain user Public folders and are therefore blocked by this feature. This can cause issues with all sorts of things including activating your AutoCAD license and even running AutoCAD. Ransomware Protection is an important feature of Windows 11 but it will affect your AutoCAD unless you allow AutoCAD and its dependent applications access to the controlled folders.

How to install AutoCAD LT95

A quick word of advice: please follow the instructions below precisely as documented including using the same folder names and paths. This will significantly reduce the risk of having any problems…

  1. If you don’t yet have a copy of the Longbow Converter App you can purchase it here or click on the download link we sent you via email in order to download the Converter App to your PC.
  2. Before installing the Converter App, make sure the files downloaded from our site are not blocked by Windows SmartScreen… Windows 11 is finicky, click the TLC zip first to make sure it’s fully selected then Right+click the file and select Properties. Be sure to check the Unblock checkbox as shown below and Click OK…
  1. Double click the zip file to open it and install the TLC application as normal. By the way, TLC stands for The Longbow Converter
  2. Once installed, start the Longbow Converter App…
    1. Now place your AutoCAD LT95 CD in the CDRom Drive
    2. In the Converter App, select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “. . .” button, select your AutoCAD LT95 installation CD
    4. Next, click the “Run Old Installer” button and follow the onscreen instructions. If all is well a dialog will appear stating success, simply click OK to start your AutoCAD setup
      1. Now I know it’s unheard of these days, but at this point expect to wait up to 45 minutes for your AutoCAD LT95 setup.exe program to appear, be patient – NOTE: do not continue with the install until reading the next step…
    5. Once the setup starts, stop and read the next steps all the way to the end! By the way, if your AutoCAD LT95 setup does not start after 45 minutes, read the Troubleshooting section below.
  3. In the AutoCAD LT95 setup program…
    1. navigate through each setup dialog as normal, with these exceptions…
    2. Make sure you do a Typical Install (not a Full Install)
    3. When you get to the installation folder input dialog **it’s vitally important to make sure you install to c:\acadLT95 (not Program Files\AutoCAD LT95 as usually prompted)**
  4. Now carry on with the install
    1. Do not reboot once the install is complete
    2. Ignore any errors related to not being able to create the shortcut e.g. “Cannot Create folder ‘AutoCAD LT95’“, you will have to create a shortcut on your computer Desktop to your c:\acadLT95\acad.exe by hand.
    3. Again, do not reboot if prompted to do so
  5. Once your AutoCAD LT95 setup has completed the installation…
    1. Make sure you fully close the setup program.
    2. Once the setup is closed the Converter will automatically fix the c:\acadLT95 program files. You should see “Success!” displayed in the 3rd tab named “Old AutoCAD Program Reviver
    3. Now reboot your PC
  6. You can now run your AutoCAD LT95, using Windows Explorer, navigate to c:\acadLT95 and double click aclt.exe

Troubleshooting

  • If your AutoCAD setup is not starting after 45 minutes…
    1. First try turning off UAC, rebooting, then restart the steps above.
    2. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing LT95 from Windows Safe Mode
  • If you are getting either a Bad Mem Pointer error and or a Smartheap handler recursively re-entered error when you start your AutoCAD then you need to re-run all the steps above, taking care to do each step precisely as it says, most likely you are missing from step 5 or you have not installed to c:\acadLT95 as stated in step (7) above.
  • When starting AutoCAD, if you receive an ‘acad.exe – System Error’ message: The program can’t start because ac1st15.dll is missing from your computerTry reinstalling the program to fix this problem. If you carried out step (7) above, then try rebooting your PC
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  • Issues with Calcomp Digitizer – Calcomp Digitizer not working
  • If the setup displays an error message InstallError (IUO)
    (X)  not enough space(IUO) try unplugging any External USB drives
  • Plotting issues? If you get an error splwow64.exe “The application was unable to start correctly” with error “0xc0000005”
    1. Make sure your Anti-virus and/or Windows Firewall is not blocking splwow64.exe
    2. If the problem persists
      1. First, note that you need the latest version of the Converter App
      2. Start the Converter App
      3. Select the 3d tab “Old AutoCAD Program Reviver”
      4. Click the Tools Menu->Reduced Power Mode
      5. Using the “…” button, pick your acad.exe folder e.g. c:\acadLT95
      6. Click “Fix Old Program” and follow prompts
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD

Copyright 2022 (c) Longbow Software

Installing Borland Delphi 3.0 on Windows 7, Windows 8 and Windows 10

If you are trying to install Borland Delphi 3 on Windows 7, 8 or Windows 10 64bit you are probably running into one of these problems…

This app can't run on your PC. To find a version that runs with your PC check with the publisher

This app can’t run on your PC. To find a version that runs with your PC check with the publisher.

Unsupported 16-bit Application - the program or feature cannot start or run due to incompatibility with 64-bit versions of WIndows

Unsupported 16-bit Application – the program or feature cannot start or run due to incompatibility with 64-bit versions of Windows

Luckily, the Longbow Reviver tool can solve this, here’s what you need to do:

  1. Obtain your copy of the Longbow Reviver tool here
  2. Backup your Borland Delphi 3 CD to your Desktop, in a “Delphi 3” folder
  3. Next, start the Longbow Reviver tool and select the “Old Installer Reviver” tab
    1. Using the “…” button select the path to the Desktop\Delphi 3\install folder…

      Selecting the Backup Copy of the Delphi 3 CD on your hard drive

      Selecting the Backup Copy of the Delphi 3 CD on your hard drive

    2. Once you have that selected, click OK and then pick the “Fix and Run Old Installer” button.
    3. Now, be patient, the process for initializing the Delphi 3 setup may take over an hour…
      1. Look out for a folder called _ISTMP0.DIR being created in the install folder, if it’s not there in an hour, restart your computer and try again…
      2. The _ISTMP0.DIR should slowly fill with about 21 files before the setup appears.
  4. Once your Delphi 3 setup appears
    1. step through the setup dialogs as normal until you get to the “Select Directories” dialog
    2. Here, make sure you change the Root folder to c:\Borland (instead of c:\Program Files (x86)\Borland)

      e.g.

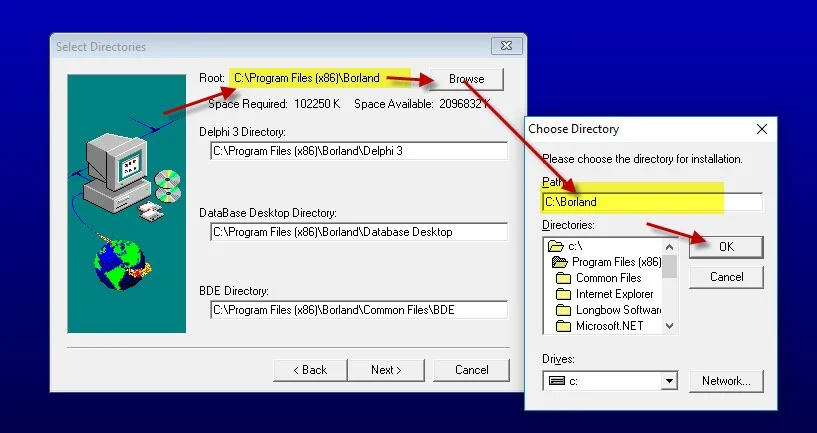

      Update the Borland Root pathto c:\Borland

      Update the Borland Root pathto c:\Borland

    3. Make sure they are setup like this…

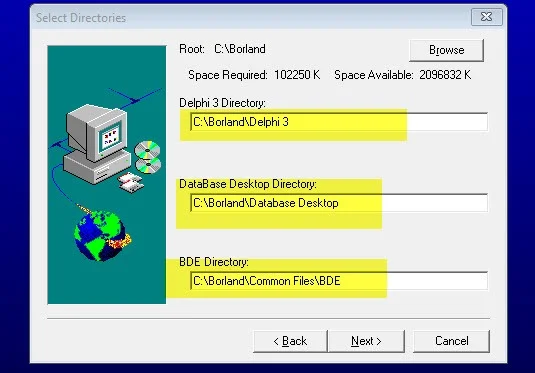

      Updated the Borland Root path

      Updated the Borland Root path

    4. Now carry on and install as normal until complete
    5. Be patient, it takes a while to complete…
  5. Once the install is complete
    1. make sure the Delphi 3 setup is shutdown.
    2. Go back to the Reviver tool and select the 2nd tab named “Old Program Reviver
    3. Using the ‘…’ button, pick the newly installed c:\Borland folder
    4. Then pick the “Run Old Program” button
  6. Now your Delphi 3 should be up and running…

Copyright 2017 (c) Longbow Software

Installing AutoCAD Map Release 3 on Windows 7, Windows 8 and Windows 10

Most current AutoCAD Map R3 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

Windows 16bit setup error – This app can’t run on your PC

…all is not lost, just read on…

How to install AutoCAD Map R3

NOTE: We have had the best success installing this product using our Converter solution on Windows 8 and Windows 10, in fact, we strongly advise using Windows 10 for this product.

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. Obtain your copy of the Longbow Converter here
  2. Before starting, we recommend turning off Windows UAC before installing AutoCAD Map R3
  3. Start the Longbow Converter tool by double clicking the Longbow Converter shortcut on your Desktop… .
    1. Insert your AutoCAD Map R3  CD
    2. Select the 2nd tab titled “Old AutoCAD Installer Reviver” by clicking on it
    3. Next, using the ‘…’ button select your AutoCAD CD
    4. Now click the “Run Old Installer” button.
      1. Read, understand and follow all the prompts.
      2. Read the next step!
  4. Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your AutoCAD 2000 setup.exe program to fully appear
    1. Once the setup starts, stop and read the next step
  5. In the setup program, navigate through each setup dialog as normal, except when you get to the installation folder, **it’s vitally important to make sure you install to c:\mapR14 (not Program Files (x86)\Land Desktop as usually prompted)**
  6. Now carry on with the install, ignore any errors related to:
    1. not being able to “…create the folder ‘AutoCAD Map Release 3”, you will have to create a shortcut on your computer Desktop to your c:\mapR14\acad.exe by hand.
    2. Failing to register DAO3032.dll, this will be automatically fixed later by the Converter
    3. Do not reboot if prompted to do so
  7. Once installed, go back to the Converter tool
    1. select the 3rd tab named “Old AutoCAD Program Reviver
    2. Using the “. . .” button pick the newly installed c:\mapR14 folder
    3. click Fix Old Program.
  8. Now you can happily run your AutoCAD Map R3 on Windows 7, Windows 8, or Windows 10 32bit or 64bit

Installing AutoCAD Map R3 Service Pack 1

  1. Download AutoCAD R14 Map R3 sp1 from here
  2. Unzip your newly downloaded sp to folder path c:\Autodesk\sp
  3. Start the Converter, select the 2nd tab, pick the c:\Autodesk\sp\AutoCAD R14 Map R3 sp1 folder and click ‘Run’
  4. Wait for the setup to appear, it could take up to 45 minutes, then install as normal

Troubleshooting

  • If you are getting either a Bad Mem Pointer error and or a Smartheap handler recursively re-entered error when you start your AutoCAD Map R3 then you need to re-run all the steps above, taking care to do each step precisely as it says.
  • If the Converter complains that “Cannot convert this AutoCAD R14, there was a problem updating the dependencies” – AutoCAD R14 must be installed first, please contact Longbow Software Support and explain this comment to them
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  • Issues with Calcomp Digitizer – Calcomp Digitizer not working
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD
Copyright 2019 (c) Longbow Software

Installing AutoCAD R14 on Windows 7, Windows 8 and Windows 10

As an existing AutoCAD R14 user, you most likely cannot do without your beloved AutoCAD R14. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD R14 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

Windows 16bit setup error – This app can’t run on your PC, check software publisher

or

 “FATAL ERROR: HEAP ERROR”

or

MEM_BAD_POINTER

You can solve these problems easily using our Longbow Converter App – fix and manage your AutoCAD R14 on new versions of Windows 7, 8 and 10 64bit

How to install AutoCAD R14

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. Obtain your copy of the Longbow Converter here
  2. NOTE: We recommend turning off Windows UAC before installing AutoCAD R14
  3. Start the Longbow Converter application…
    1. Place your AutoCAD R14 CD in the CDRom Drive
    2. Select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “. . .” button, select your AutoCAD R14 installation CD
    4. Next, click the “Run Old Installer” button and follow the onscreen instructions
      1. Now, I know it’s unheard of these days, but at this point expect to wait up to 45 minutes for your AutoCAD R14 setup.exe program to appear, be patient…
    5. Once the setup starts, stop and read the next steps all the way to the end! By the way, if your AutoCAD R14 setup does not start after 45 minutes, read the Troubleshooting section below.
  4. In the AutoCAD R14 setup program…
    1. navigate through each setup dialog as normal, with these exceptions…
      1. Make sure you do a Typical Install (not a Full Install)
      2. When you get to the installation folder input dialog **it’s vitally important to make sure you install to c:\acadR14 (not .\AutoCAD R14 as usually prompted)**
  5. Now carry on with the install
    1. Do not reboot once the install is complete
    2. Ignore any errors related to not being able to create the shortcut e.g. “Cannot Create folder ‘AutoCAD R14’“, you will have to create a shortcut on your computer Desktop to your c:\acadR14\acad.exe by hand.
    3. Again, do not reboot if prompted to do so
  6. Once your AutoCAD R14 setup has completed the installation…
    1. Make sure you fully close the setup program.
    2. Once the setup is closed the Converter will automatically fix the c:\acadr14 program files. You should see “Success!” displayed in the 3rd tab named “Old AutoCAD Program Reviver
    3. Reboot your PC
  7. Now you can happily run your AutoCAD R14 on Windows 7, Windows 8, or Windows 10 32bit or 64bit…
    1. Using Windows Explorer, navigate to c:\acadR14 and double click acad.exe

Troubleshooting

  1. If your AutoCAD R14 setup is not starting after 45 minutes…
    1. First try turning off UAC, rebooting, then restart the steps above.
    2. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing R14 from Windows Safe Mode
  2. If you are getting either a Bad Mem Pointer error and or a Smartheap handler recursively re-entered error when you start your AutoCAD R14 then you need to re-run all the steps above, taking care to do each step precisely as it says, most likely you are missing from step 5 or you have not installed to c:\acadR14 as stated in step (7) above.
  3. When starting AutoCAD, if you receive an ‘acad.exe – System Error’ message: The program can’t start because ac1st15.dll is missing from your computer. Try reinstalling the program to fix this problem. If you carried out step (7) above, then try rebooting your PC
  4. If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  5. Issues with Calcomp Digitizer – Calcomp Digitizer not working
  6. If the setup displays an error message

    InstallError (IUO)
    (X)  not enough space(IUO)

    try unplugging any External USB drives

  7. Plotting issues? If you get an error splwow64.exe “The application was unable to start correctly” with error “0xc0000005”
    1. Make sure your Anti-virus and/or Windows Firewall is not blocking splwow64.exe
    2. If the problem persists
      1. First, note that you need the latest version of the Converter App
      2. Start the Converter App
      3. Select the 3d tab “Old AutoCAD Program Reviver”
      4. Click the Tools Menu->Reduced Power Mode
      5. Using the “…” button, pick your acad.exe folder e.g. c:\acadr14
      6. Click “Fix Old Program” and follow prompts
  8. If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD
Copyright 2019 (c) Longbow Software



Installing AutoCAD 2000 on Windows 7, Windows 8 and Windows 10



Most current AutoCAD 2000 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD 2000 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

Windows 16bit setup error – This app can’t run on your PC

Or maybe this error…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98

Error while trying to install AutoCAD 2000

…all is not lost, just read on…

How to install AutoCAD 2000

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. Obtain your copy of the Longbow Converter here
  2. Before starting, we recommend turning off Windows UAC
  3. Now, start the Longbow Converter tool by double clicking the Longbow Converter shortcut on your Desktop… .
    1. Insert your AutoCAD 2000 CD
    2. Select the 2nd tab titled “Old AutoCAD Installer Reviver” by clicking on it
    3. Next, using the ‘…’ button select your AutoCAD 2000 CD
    4. Now click the “Run Old Installer” button.
      1. Read, understand and follow all the prompts.
  4. For AutoCAD 2000, the Migration Wizard almost instantly pops up
    1. simply click “Install 2000” as normal.
    2. Now, I know it’s unheard of these days, but at this pointexpect to wait at least 45 minutes for your AutoCAD 2000 setup.exe program to fully appear – please be patient
    3. Once the setup starts, stop and read the next step
  5. In the setup program, navigate through each setup dialog as normal, except when you get to the installation folder, **it’s vitally important to make sure you install to c:\acad2000 (not Program Files (x86)\AutoCAD 2000 as usually prompted)**  e.g.
    Setting AutoCAD 2000 custom install directory to c:\acad2000

    Setting AutoCAD 2000 custom install directory to c:\acad2000

    1. Once you have set the Destination Folder to c:\acad2000, install as normal
      1. Ignore the error message that the shortcut cannot be created “Cannot create folder AutoCAD 2000“, you will need to create the program shortcut by hand once the installation is finished.
    2. Do not reboot if prompted to do so
  6. Once setup has completed…
    1. Make sure to fully close the setup program
    2. Back in the Converter app, make sure it has completed the final stage of processing using the “Old AutoCAD Program Reviver” tab – it should display “SUCCESS” in green…
  7. Now Reboot your PC
  8. Your AutoCAD 2000 is ready to run as it is right now, simply use Windows Explorer, navigate to c:\acad2000 and double click acad.exe (if you want a shortcut on the Desktop you will have to manually create it).

Installing AutoCAD 2000 Express Tools

If you rely on AutoCAD 2000 Express Tools or you are seeing “Missing Application: RTEXT” Proxy dialog when you are loading on a drawing, here are the instructions for installing Express Tools Volume 9 for AutoCAD 2000

Installing AutoCAD 2000 ObjectDBX Classes Object Enabler

  1. Download AutoCAD 2000 ObjectDBX Classes Object Enabler from here
  2. Unzip to folder path c:\Autodesk
  3. Start the Converter
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. Using the “…” button, pick the c:\Autodesk\AutoCAD 2000 – ObjectDBX Classes Object Enabler folder
    3. click ‘Run Old Installer
    4. Install as normal

Installing AutoCAD 2000 AEC Object Enabler 2.11

  1. Download AutoCAD 2000 AEC Object Enabler 2.11 from here
  2. Unzip your newly downloaded sp to folder path c:\Autodesk\AutoCAD2000-AEC211
  3. Start the Converter
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. Using the “…” button, pick the c:\Autodesk\AutoCAD2000-AEC211 folder
    3. click ‘Run Old Installer
    4. Wait for the setup to appear, it could take up to 45 minutes, then install as normal

Installing AutoCAD 2000 Architectural Object Enabler 3.02

  1. Download AutoCAD 2000 Architectural Object Enabler 3.02 from here
  2. Unzip and install as normal

Installing AutoCAD 2000 Service Pack 1

  1. Download AutoCAD 2000 sp1 from here
    1. Unzip the downloaded zip file to folder path c:\Autodesk\sp
  2. Start the Converter
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. pick the c:\Autodesk\sp\AutoCAD 2000 sp1 folder
    3. click ‘Run Old Installer
    4. Wait for the setup to appear, it could take up to 45 minutes, then install as normal

Installing AutoCAD 2000 Service Pack 2

  1. Download AutoCAD 2000 sp2 from here
  2. Unzip the downloaded zip file to folder path c:\Autodesk\sp
  3.
  4. Start the Converter
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. pick the c:\Autodesk\sp\AutoCAD 2000 sp2 folder
    3. click ‘Run Old Installer
    4. Wait for the setup to appear, it could take up to 45 minutes, then install as normal

Installing AutoCAD 2000 3D Graphics System Update 1

If you use 3D a lot in AutoCAD 2000, you should read on to install the 3DUpdate…

  1. Download AutoCAD 2000 3D Graphics System Update1 from here
  2. Unzip your newly downloaded sp to folder path c:\Autodesk\update
  3. Start the Converter, select the 2nd tab, pick the c:\Autodesk\update folder and click ‘Run’
  4. Wait for the setup to appear, it could take up to 45 minutes, then install as normal.

NOTE: Some users have found that the 3D Graphics System Update runs through the install as normal but doesn’t actually update the modules. If you suspect this is true, contact Longbow Software Support.

Troubleshooting

  • If your AutoCAD 2000 setup is not starting after 45 minutes
    • try rebooting, then restart the steps above. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing AutoCAD 2000 from Windows Safe Mode
  • If when you start AutoCAD, you see error messages about missing missing aclst15.dll or missing ACUTIL15.dll or missing ACDB15.dll or missing acge15.dll
    • In the Converter app Using the 3rd tab, pick your c:\acad2000 folder and click ‘Fix’. Then reboot…
    • If this doesn’t fix the problem, contact Longbow Software Support.
  • Plotting – if you are having plotting issues, either
  • If you see Proxy Warning Dialogs when you open a DWG using AutoCAD 2000, you need to install the service packs as described above.
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  • Issues with Calcomp Digitizer – Calcomp Digitizer not working



  • If you still see the error “Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98” even after converting
    • Copy the AutoCAD 2000 CD fresh to your computer, then start from step (1) again
    • If you still get the error, you need the latest version of the Longbow Converter tool
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD
Copyright 2021 (c) Longbow Software

Installing plotupdate.exe for AutoCAD 2000 on 64bit Windows 7, Windows 8 and Windows 10

If you are receiving either an “Out of memory” or “Memory allocation error” while trying to plot inside of AutoCAD 2000, then you are most likely missing the AutoCAD 2000 patch called “plotupdate”.

This blog documents how to install the “plotupdate” patch on Windows7, Windows 8, Windows 8.1 and Windows 10 64bit. NOTE: You will have needed to install AutoCAD 2000 first

Here is the English readme for the AutoCAD 2000 plotupdate patch which explains what it specifically addresses. Click here for French, German, Italian and Spanish readme for plotupdate.exe

Here’s how to patch your AutoCAD 2000 with the plotupdate.exe

  1. Obtain your copy of the Longbow Converter here
  2. Next download the Plotupdate.exe for AutoCAD 2000 zip and unzip to the folder c:\Autodesk, it will unzip to c:\Autodesk\Plotupdate2000
    1. Note: Click here for French, German, Italian and Spanish plotupdate.exe
  3. Start the Longbow Converter tool
    1. Next, select the 2nd tab named ‘Old AutoCAD Installer Reviver
    2. Using the ‘…’ button select the path c:\Autodesk\Plotupdate2000 then click the ‘Run Old Installer‘ button
    3. When asked “Is this an installation media, a service pack/update or plug-in/app for AutoCAD?” say Yes
    4. Next, read and understand all the prompts before pressing OK… Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for the AutoCAD 2000 Plotupdate setup.exe program to appear.
    5. Once the setup starts, install as normal (simply accept all defaults).
  4. Now run your AutoCAD 2000 and plot as normal
    1. Important Tip: You can add new Plotters using the c:\acad2000\addplwiz.exe

Troubleshooting

If your PlotUpdate setup is not starting after 45 minutes

  • try rebooting, then restart the steps above. If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar)

If you still can’t get your plotter to work

  • Make sure your Anti-virus and/or Windows Firewall is not blocking splwow64.exe
    • Make sure your Anti-virus and/or Windows Firewall is not blocking splwow64.exe
    • If the problem persists, you have 2 options
      • Install Autodesk’s free DWGTrueview App which allows full plotting using the latest version of AutoCAD
      • Fix your AutoCAD 2000 install…
        • start the Converter App
        • Select the 3d tab “Old AutoCAD Program Reviver”
        • Click the Tools Menu->Reduced Power Mode
        • Using the “…” button, pick your acad.exe folder e.g. c:\acad2000
        • Click “Fix Old Program” and follow prompts

Copyright 2019 (c) Longbow Software

Installing Softdesk 8 Imaging for AutoCAD R14 on Windows 7, Windows 8 and Windows 10

NOTE: We have had the best success installing this product using our Converter solution on Windows 8 and Windows 10

Installing Softdesk 8 Imaging for AutoCAD R14 on Windows 7, Windows 8, Windows 8.1 and Windows 10 32bit or 64bit can be very easily defined in these short steps.

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. First, obtain your copy of the Longbow Converter here
  2. Install your AutoCAD R14 by carefully following the steps detailed here
  3. Using Windows Explorer, copy your entire Softdesk 8 Imaging CD contents to your hard drive, to a folder path c:\Autodesk\imagingR14
  4. Start the Longbow Converter tool, select the 2nd tab, pick the c:\Autodesk\imagingR14 folder, and click Run.
    1. When asked “Is this an installation media, a service pack/update or plug-in/app for AutoCAD?” say Yes
    2. Next, read and understand all the prompts before pressing OK… Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your Softdesk setup.exe program to appear. Once the setup starts, install as normal (simply accept all defaults).
  5. Next, start your AutoCAD R14. Once AutoCAD starts up fully, simply type preferences at the command line, select the Profiles tab, double click the Softdesk profile and make it the Current Profile. Finally, OK out of the preferences dialog.
  6. Now you can happily run your Softdesk 8 Imaging inside of AutoCAD R14 on Windows 7, Windows 8, Windows 8.1 or Windows 10 32bit or 64bit

Troubleshooting

If your setup is not starting after 45 minutes, try rebooting, then restart the steps above.

  • If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing from Windows Safe Mode
Copyright 2015 (c) Longbow Software

Installing Autodesk Mechanical Desktop 3 on Windows 7, Windows 8 and Windows 10

NOTE: We have had the best success installing this product using our Converter solution on Windows 8 and Windows 10



Installing your Autodesk Mechanical Desktop R3 (otherwise known as MDT 3 and built on the AutoCAD R14.01 platform) on Windows 7, Windows 8, Windows 8.1 and Windows 10 32bit or 64bit can be very easily defined in these short steps…

Instructions on installing Autodesk Mechanical R2 can be found here…

NOTE: These steps do not bypass normal Autodesk licensing/authorization, you should expect to use your own serial numbers in the normal way.

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…
  1. Obtain your copy of the Longbow Converter here
  2. Using Windows Explorer, copy your entire MDT 3 CD to your hard drive, to a folder path c:\Autodesk\mdt3R14
  3. Start the Longbow Converter tool
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. pick the c:\Autodesk\mdt3R14 folder and click the “Run Old Installer” button.
      1. Read and understand all the prompts before pressing OK.
      2. Now, I know it’s unheard of these days, but at this point expect to wait up to 45 minutes for your Mechanical 3 setup.exe program to appear.
      3. Once the setup starts, stop and read the next step…
  4. In the setup program…
    1. navigate through each setup dialog as normal **except** when you get to the installation folder, **it’s vitally important to make sure you install to c:\mdt3R14 (not .\Mechanical as usually prompted)**
  5. Now carry on with the install…
    1. Do not reboot once the install is complete.
    2. Ignore any errors related to not being able to create the shortcut folder “Autodesk Mechanical 3”, you will have to create a shortcut on your computer Desktop pointing to your c:\mdt3R14\acad.exe by hand.
    3. You will also be prompted that Adobe reader 3.01 needs to be installed – when you press OK, again, expect to wait up to 45 minutes for the Adobe setup.exe program to appear install as normal accepting all defaults this time.
    4. Again, do not reboot if prompted to do so…
  6. Once installed, go back to the Converter tool…
    1. select the 3rd tab named “Old AutoCAD Program Reviver
    2. pick the newly installed c:\mdt3R14 folder and click “Fix Old Program“.
  7. At this point, you can actually run AutoCAD, simply run c:\mdt3R14\acad.exe using Windows Explorer… However…
  8. You will notice that you are running raw AutoCAD, to enable your Mechanical Desktop features, carry out these next steps, either…
    1. Add a shortcut (recommended) to C:\mdt3R14\acad.exe making sure that the Target Property of the shortcut is set to:C:\mdt3R14\acad.exe  /p C:\mdt3R14\desktop\desktop.arg
    2. or update your AutoCAD support path by hand…
      1. At the AutoCAD Command line, type the command ‘Preferences’, add new Support path folders c:\mdt3R14\acadm and then also c:\mdt3R14\acadm\support, now click ‘Apply’ and then ‘OK’ out of the dialog.
      2. Next, restart AutoCAD.
      3. When you are back in AutoCAD, type ‘Menuload’ at the command line, click browse, then navigate to C:\mdt3R14\acadm\support, change the file filter at the bottom to *.mnu, then open acadm.mnu, finally click Load, then pick Close.
      4. Now restart AutoCAD
  9. Now you can happily run your Autodesk Mechanical Desktop 3 on Windows 7, Windows 8, Windows 8.1 and Windows 10 32bit or 64bit
Troubleshooting:
Copyright 2017 (c) Longbow Software

Installing AutoCAD LT 2002 on Windows 10, Windows 7, Windows 8 and Windows 8.1

If you are a seasoned AutoCAD LT 2002 user, no doubt you will at some point have run into the famous GEDIT 3 error and been very frustrated with it. That error occurs because of certain video card drivers and/or certain types of anti-virus software setups.

On Windows 10, Windows 7 and Windows 8, the GEDIT 3 error is even more prominent because of all the new security features that are inside of Windows 7 and 8. The good news is that it’s totally possible to eradicate the GEDIT 3 error by follow the instructions below:


How to install AutoCAD LT 2002

  1. Obtain your purchased copy of the Longbow Converter here
  2. Start the Longbow Converter tool
    1. Insert your AutoCAD CD into your CDRom drive
    2. Select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “…” button, path the to your AutoCAD CD
    4. Click “Run Old Installer
      1. Read and follow all the prompts
      2. Once the AutoCAD setup starts, stop and read the next step…
  3. In the setup program, navigate through each setup dialog as normal, except when you get to the installation folder – **it’s vitally important to make sure you install to c:\acadlt2002 (not Program Files (x86)\AutoCAD LT 2002 as usually prompted by default)**
    1. IMPORTANT NOTE: For AutoCAD 2002 you may find that entering the path C:\acadlt2002 may not take (a bug in the AutoCAD 2002 installer). In that case, you will need to select the installation folder C:\Program Files (x86)\AutoCAD LT 2002 in step (5) below
    2. Do not reboot if prompted to do so

      You must change the default AutoCAD LT 2002 Install path
  4. Once installed
    1. Once installed
      1. Do not reboot if asked to do so
      2. Make sure to fully close the setup program when the installation is complete.
      3. Back in the Converter app and make sure it’s completed the final stage of processing using the “Old AutoCAD Program Reviver” tab.
  5. Now run your AutoCAD LT 2002 and completely register as normal. Once registered, exit AutoCAD and continue to the next step.
  6. Next, obtain the AutoCAD LT 2002 sp1 from here unzip and save to c:\Autodesk\spdo not install yet
  7. Next, obtain the AutoCAD LT 2002 sp2 from here (or AutoCAD LT 2002 sp2 locked version from here) and save to c:\Autodesk\sp do not install yet
  8. Go back into the Converter
    1. select the 3rd tab named “Old AutoCAD Program Reviver”
    2. Using the “. . .” button, select the c:\Autodesk\sp folder
    3. click “Fix Old Program“.
  9. Now Install the LT 2002 sp1 by running c:\Autodesk\sp\acad2002LTsp1.exe
    1. IMPORTANT NOTE: If you get a 114 error, contact Longbow Software Support to get them to fix it for you.
  10. Next, install the LT 2002 sp2 by running either the unlocked c:\Autodesk\sp\acltk044-k047unl.exe or the locked c:\Autodesk\sp\acltk044-k047swl.exe
    1. IMPORTANT NOTE: If you get a 114 error, contact Longbow Software Support to get them to fix it for you.
  11. Finally, reboot your PC and run AutoCAD as normal.

Troubleshooting

  • If you cannot install your AutoCAD LT 2002 Service Packs because of an error “114: Autocad LT 2002 update was not applied” – rather than try and solve this issue, the easiest solution is:
    1. To go back to your old Windows XP machine and make sure that all of the sp’s are installed on your old Windows XP machine’s installation of AutoCAD LT 2002
    2. Next, simply copy all of the AutoCAD LT 2002 program files and folders from your old Windows XP machine to a USB drive – copy the “contents” of C:\Program Files\AutoCAD LT 2002
    3. Now transfer the USB to your new machine and copy the files that were on your old Windows XP machine’s C:\Program Files\AutoCAD LT 2002 folder into your newly installed c:\acadlt2002 folder – you should see a question if you should overwrite all files, say YES
  • If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD



Copyright 2019 (c) Longbow Software

Installing AutoCAD LT 2000 on Windows 7, Windows 8 and Windows 10

Most users of AutoCAD LT 2000 are so used to it that they cannot do without it. With the latest hardware and required move to newer Windows versions, trying to install your AutoCAD LT 2000 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

Windows 16bit setup error – This app can’t run on your PC

Or maybe this error…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98

Error while trying to install AutoCAD LT 2000 on newer versions of Windows

…all is not lost, just read on…

How to install AutoCAD LT 2000

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…
  1. Obtain your copy of the Longbow Converter here
    1. Before starting, we recommend turning off Windows UAC
  2. Once you have installed the Converter App, start by double clicking the Longbow Converter shortcut on your Desktop…
    1. Insert your AutoCAD LT 2000 CD
    2. Select the 2nd tab titled “Old AutoCAD Installer Reviver” by clicking on it
    3. Using the ‘…’ button select your AutoCAD LT 2000 CD
    4. Now click the “Run Old Installer” button.
      1. Read, understand and follow all the prompts
  3. Once the AutoCAD setup program appears navigate through each setup dialog as normal and do not deviate from the defaults except when you get to the installation folder – **it’s vitally important to make sure you install to c:\acadlt2000 (not Program Files (x86)\AutoCAD LT 2000 as usually prompted)** e.g.Setting custom install path for AutoCAD LT 2000
    1. Now complete the setup making sure to…
      1. ignore the error message that appears near the end about the shortcut cannot be created “Cannot create folder AutoCAD LT 2000” – you will simply need to create the program shortcut yourself by hand once the installation is finished.
      2. Do not reboot if prompted to do so
  4. Once setup has completed…
    1. Make sure to fully close the AutoCAD setup program
    2. Back in the Converter App, make sure it has completed the final stage of processing using the “Old AutoCAD Program Reviver” tab – it should display “SUCCESS” in green…
  5. Now Reboot your PC
  6. Now you are ready to run your AutoCAD LT 2000! Simply use Windows Explorer, navigate to c:\acadlt2000 and double click aclt.exe

Troubleshooting

Copyright 2021 (c) Longbow Software

Installing AutoCAD 2006 LT on Windows 7, Windows 8 and Windows 10

Follow these instructions to solve issues around installing/running your old AutoCAD LT 2006 on newer versions of 64bit Windows 7, Windows 8 and Windows 10

IMPORTANT NOTE: Autodesk no longer supply License Activation codes for this version of AutoCAD. The best way is to transfer your existing license to the new PC but there are other options, we document them here

How to install AutoCAD LT 2006

  1. Obtain your purchased copy of the Longbow Converter here
  2. Start the Longbow Converter tool
    1. Insert your AutoCAD LT 2006 CD into your CDRom drive
    2. select the 2nd tab named “Old AutoCAD Installer Reviver
    3. Using the “…” button, path the to your AutoCAD 2006 CD
    4. Click “Run Old Installer
      1. Read and follow all the prompts
      2. Once the AutoCAD LT 2006 setup starts, stop and read the next step…
  3. In the setup program, navigate through each setup dialog as normal, with these exceptions…
    1. When you click the Install link from your setup you may see a dialog box appear saying – “This program has compatibility issues” – simply check the “Don’t show this message again” and then click the “Run the program without getting help” button
    2. When you arrive at the installation folder path setup dialog, **it’s vitally important to make sure you install to c:\acadlt2006 (not Program Files (x86)\AutoCAD LT 2006)**.
  4. Now simply reboot your PC and run your AutoCAD as normal
    1. NOTE: When starting AutoCAD, if you see a warning dialog when you run saying “This program has known compatibility issues”, simply click “Don’t show this message again” and then click “Run the Program…”

Installing AutoCAD LT 2006 Service Pack 1

  1. English Users, Download your English AutoCAD LT 2006 sp1 from here
    1. Non-English users, Download your language specific AutoCAD 2006 sp1 from here
  2. Now copy your newly downloaded sp (for English users the filename is AutoCADLT2006lockedSP1.exe) to folder path c:\Autodesk\sp
  3. Start the Converter, select the 3rd tab, pick the c:\Autodesk\sp folder and click Fix.
  4. Now run the AutoCADLT2006lockedSP1.exe from Windows explorer to install.
  5. Once completed, now run your AutoCAD!

Troubleshooting

– If you see a warning dialog when you run AutoCAD saying “This program has known compatibility issues”, simply click “Don’t show this message again” and then click “Run the Program…

– If you are unable to activate your product, or the activation process crashes:

– If you have crashing problems using the File->Open or File->Save dialogs inside of AutoCAD please read this blog entry on the File->Open or File->Save Crash in AutoCAD


Copyright 2020 (c) Longbow Software



Installing AutoCAD for Windows 95 (LT95) on Windows 7, Windows 8 and Windows 10

AutoCAD for Windows 95 (LT95) users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT95 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

“This app can’t run on your PC”

or this one…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98”

…all is not lost…

How to install AutoCAD LT95

Obtain your copy of the Longbow Converter here, you will need minimum version 7.16.

  1. Using Windows Explorer
    1. copy all of your AutoCAD LT95 disks to your hard drive, to a folder path c:\Autodesk\acadLT95 (Each disk should be in a numbered sub-folder off c:\Autodesk\acadLT95 e.g. c:\Autodesk\acadLT95\1
  2. Once you have copied all the disks, start the Longbow Converter tool
    1. select the 2nd tab named “Old AutoCAD Installer Reviver
    2. pick the c:\Autodesk\acadLT95\1 folder (disk 1)
    3. Next click “Run Old Installer“.
      1. Read and understand all the prompts before pressing OK.
      2. Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your AutoCAD LT95 setup.exe program to appear. Once the setup starts, stop and read the next step…
  3. In the setup program, navigate through each setup dialog as normal, except when you get to the installation folder, **it’s vitally important to make sure you install to c:\acadLT95 (not the Program Files (x86)\AutoCAD LT as usually prompted)**
    1. If prompted, do not reboot once the installation has completed
  4. Once installed
    1. go back to the Converter tool
    2. select the 3rd tab named “Old AutoCAD Program Reviver
    3. pick the newly installed c:\acadLT95 folder and click “Fix Old Program“.
    4. Once the Converter has completed with “Success!”, close the Converter app, reboot your PC!
  5. Now you can happily run your AutoCAD for Windows 95 on Windows 10, Windows 7 and Windows 8 32bit or 64bit. Simply navigate to c:\acadLT95 using Windows Explorer, and double click aclt.exe.

Troubleshooting

Copyright 2018 (c) Longbow Software

Installing Softdesk 8 for AutoCAD R14 on Windows 10, Windows 7, Windows 8 and Windows 8.1

NOTE: We have had the best success installing this product using our Converter solution on Windows 8 and Windows 10

Installing your Softdesk 8 for AutoCAD R14 on Windows 10, Windows 7, Windows 8 or Windows 8.1 32bit or 64bit can be very easily defined in these short steps.

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. First, obtain your copy of the Longbow Converter here
  2. Install your AutoCAD R14 by carefully following the steps detailed here
  3. Using Windows Explorer, copy your entire Softdesk CD to your hard drive, to a folder path c:\Autodesk\softdesk
  4. Start the Longbow Converter tool, select the 2nd tab, pick the c:\Autodesk\softdesk folder, and click Run. Read and understand all the prompts before pressing OK. Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your Softdesk setup.exe program to appear. Once the setup starts, install as normal (simply accept all defaults).
  5. Next we need to initialize Softdesk on startup, so depending on what works best for you – either
    1. Start your AutoCAD R14 by running c:\acadR14\acad.exe. Once AutoCAD starts up fully, simply type preferences at the command line, select the Profiles tab, double click the Softdesk profile and make it the Current Profile. Finally, OK out of the preferences dialog.
    2. Another way to intialize Softdesk on startup is to create a Desktop shortcut to c:\acadR14\acad.exe – make sure the shortcut
      1. Target: is set to C:\acadR14\acad.exe /c c:\sdsk\programs /p “softdesk 8”
      2. Working Directory: is set to C:\acadR14
  6. Now you can happily run your Softdesk tools inside of AutoCAD R14 on Windows 10, Windows 7, Windows 8 or Windows 8.1 32bit or 64bit

Troubleshooting

If your setup is not starting after 45 minutes, try rebooting, then restart the steps above.

  • If it is still failing, most likely it’s because of another application on your system which is preventing our setup routine from starting (perhaps anti-virus, or similar) – try installing from Windows Safe Mode
Copyright 2015 (c) Longbow Software

Installing AutoCAD Mechanical Desktop Release 2 on Windows 10, Windows 7, Windows 8 and Windows 8.1

NOTE: We have had the best success installing this product using our Converter solution on Windows 8 and Windows 10

Installing your Mechanical Desktop R2 (built on AutoCAD R14.01) on Windows 10, Windows 7, Windows 8 or Windows 8.1 32bit or 64bit can be very easily defined in these short steps…

Instructions on installing Autodesk Mechanical 3 can be found here…

NOTE: These steps do not bypass normal Autodesk licensing/authorization, you should expect to use your own serial numbers in the normal way.

A quick word of advice: best to follow the instructions below precisely and to the letter, including folder names and paths, that way you will reduce the risk of having any problems…

  1. Obtain your copy of the Longbow Converter here
  2. Using Windows Explorer, copy your entire Mechanical Desktop Release 2.0 CD to your hard drive, to a folder path c:\Autodesk\mdtR14
  3. Start the Longbow Converter tool, select the 2nd tab, pick the c:\Autodesk\mdtR14 folder, and click Run. Read and understand all the prompts before pressing OK. Now, I know it’s unheard of these days, but at this point expect to wait at least 45 minutes for your Mechanical Desktop setup.exe program to appear. Once the setup starts, stop and read the next step…
  4. In the setup program, navigate through each setup dialog as normal, except when you get to the installation folder, **it’s vitally important to make sure you install to c:\mdtR14 (not .\Mechanical as usually prompted)**
  5. Now carry on with the install (do not reboot once the install is complete) Ignore any errors related to not being able to create the shortcut, you will have to create a shortcut on your computer Desktop to your c:\mdtR14\acad.exe by hand. You will also be prompted that Adobe reader needs to be installed – when you press OK, expect to wait at least 45 minutes for the Adobe setup.exe program to appear install as normal accepting all defaults this time.
    1. Do not reboot if prompted to do so…
  6. Once installed, go back to the Converter tool, select the 3rd tab, pick the newly installed c:\mdtR14 folder and click Fix.
  7. Now you are ready to run AutoCAD, simply run c:\mdtR14\acad.exe using Windows Explorer.
  8. You will notice that you are running raw AutoCAD, to enable your Mechanical Desktop features, carry out these next steps…
    1. At the AutoCAD Command line, type the command ‘Preferences’, add new Support path folders c:\mdtR14\acadm and then also c:\mdtR14\acadm\support, now click ‘Apply’ and then ‘OK’ out of the dialog.
    2. Next, restart AutoCAD.
    3. When you are back in AutoCAD, type ‘Menuload’ at the command line, click browse, then navigate to C:\mdtR14\acadm\support, change the file filter at the bottom to *.mnu, then open acadm.mnu, finally click Load, then pick Close.
    4. Now restart AutoCAD
  9. Now you can happily run your Mechanical Desktop Release 2.0 on Windows 10, Windows 7, Windows 8 or Windows 8.1 32bit or 64bit
Troubleshooting:
Copyright 2015 (c) Longbow Software

Installing AutoCAD LT97 on Windows 7, Windows 8 and Windows 10

AutoCAD LT97 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT97 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

“This app can’t run on your PC”

or this one…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98”

…all is not lost…

How to install AutoCAD LT97

  1. Obtain your purchased copy of the Longbow Converter here
    1. Because Windows is constantly updating you will need the latest version of the Converter App
  2. Start In the Converter App
  3. Insert your AutoCAD LT97 CD into your CDRom drive…
    1. Select the 2nd tab titled “Old AutoCAD Installer Reviver
    2. Using the “. . .” button, select your AutoCAD LT97 installation CD
    3. Next, click the “Run Old Installer” button and follow the instructions
    4. Please be patient as the Converter starts your AutoCAD LT97 Setup…. expect to wait at least 45 minutes for your AutoCAD LT97 setup.exe program to appear.
      1. Once the setup starts, stop and read the next step…
  4. In the setup program…
    1. navigate through each setup dialog as normal except when you get to the installation folder input – **it’s vitally important to make sure you install to c:\acadLT97 (not .\AutoCAD LT97 as usually prompted)**
    2. Now carry on with the install…
    3. Ignore any errors related to not being able to create the shortcut Cannot create folder “AutoCAD LT 97” you will have to create a shortcut on your computer Desktop to your c:\acadLT97\aclt.exe by hand.
    4. Do not reboot if prompted to do so
    5. Make sure you fully close the setup program.
  5. Once the setup is closed the Converter will automatically fix the c:\acadLT97 program files.
    1. You should see “Success!” displayed in the 3rd tab named “Old AutoCAD Program Reviver
      1. Now, close the Converter App
      2. Reboot your PC
  6. Now you can happily run your AutoCAD LT97, using Windows Explorer, navigate to c:\acadLT97 and double click aclt.exe


Troubleshooting

  • If you are getting an application failure with Unhandled Exception 0x800F0922
    • The security software (ESET Nod 32) must uninstalled; suspending it not effective
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft

Copyright 2021 (c) Longbow Software

Installing AutoCAD LT98 on Windows 7, Windows 8, Windows 10

AutoCAD LT98 users are very used to the software package and cannot do without it. With the latest hardware and required move to new Windows versions, trying to install your AutoCAD LT98 gives an error like this one…

Windows 16bit setup error - This app can't run on your PC

“This app can’t run on your PC”

or this one…

Setup Halted System requirements error Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98“Wrong OS, AutoCAD supports Windows NT 4.0, Windows NT 5.0, Windows 95 and Windows 98”

…all is not lost…

How to install AutoCAD LT98

  1. Obtain your purchased copy of the Longbow Converter here
  2. Start In the Converter App
  3. Insert your AutoCAD LT98 CD into your CDRom drive…
    1. Select the 2nd tab titled “Old AutoCAD Installer Reviver
    2. Using the “. . .” button, select your AutoCAD LT98 installation CD
    3. Next, click the “Run Old Installer” button and follow the instructions
    4. Please be patient as the Converter starts your AutoCAD LT98 Setup…. expect to wait at least 45 minutes for your AutoCAD LT98 setup.exe program to appear.
      1. Once the setup starts, stop and read the next step…
  4. In the setup program…
    1. navigate through each setup dialog as normal except when you get to the installation folder input – **it’s vitally important to make sure you install to c:\acadLT98 (not .\AutoCAD LT98 as usually prompted)**
    2. Now carry on with the install…
    3. Ignore any errors related to not being able to create the shortcut Cannot create folder “AutoCAD LT 98” you will have to create a shortcut on your computer Desktop to your c:\acadLT98\aclt.exe by hand.
    4. Do not reboot if prompted to do so
  5. Once installed, go back to the Converter tool…
    1. select the 3rd tab – “Old AutoCAD Program Reviver”
    2. Using the “. . .” button, select the newly installed c:\acadLT98 folder
    3. Once you have selected the c:\acadLT98 folder simply click the “Fix Old Program” button.
    4. Once the Converter has completed with “Success!”, close the Converter app, reboot your PC!
  6. Now you can happily run your AutoCAD LT98! Simply use Windows Explorer, navigate to c:\acadLT98 and double click aclt.exe.
Troubleshooting:
  • If you are getting a WinHelp() error when pressing F1 to try and access the Help system then simply install the WinHelp (WinHlp32.exe) module from Microsoft
  • If your wheel mouse zoom is erratic (random zoom in / outs while scrolling), update the Control Panel->Mouse->Wheel->”Roll the wheel one notch to scroll” set to 3 lines or less
Copyright 2018 (c) Longbow Software
